Scan patterns¶

This notebook shows all the possible scan configurations.

[1]:

from maria.cmb import generate_cmb_patch

cmb_patch = generate_cmb_patch(width=5, center=(150, -45))

cmb_patch.plot(cmap="cmb")

2026-03-12 00:03:33.776 INFO: Fetching https://github.com/thomaswmorris/maria-data/raw/master/cmb/spectra/camb.csv
Downloading: |                | 842k/? [00:00<00:00, 42.1MB/s]

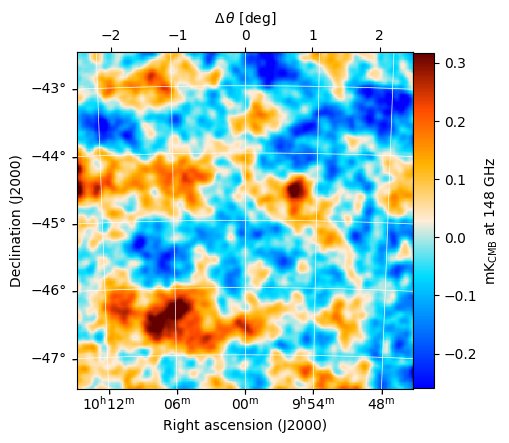

../../_images/tutorials_inputs_scan-patterns_1_1.png

[2]:

from maria import Planner

planner = Planner(target=cmb_patch, site="llano_de_chajnantor", constraints={"el": (40, 90)})

[3]:

plans = planner.generate_plans(total_duration=900,
                               scan_pattern="daisy",
                               scan_options={"radius": 1e0, "speed": 2e-1})
plans[0].plot()
plans[0].plot_counts(instrument="test/1deg")

2026-03-12 00:03:39.475 WARNING: No noise level specified for band f090, assuming a sensitivity of 50 uK_RJ√s.
2026-03-12 00:03:39.503 WARNING: No noise level specified for band f150, assuming a sensitivity of 50 uK_RJ√s.
2026-03-12 00:03:39.531 WARNING: No noise level specified for band f220, assuming a sensitivity of 50 uK_RJ√s.

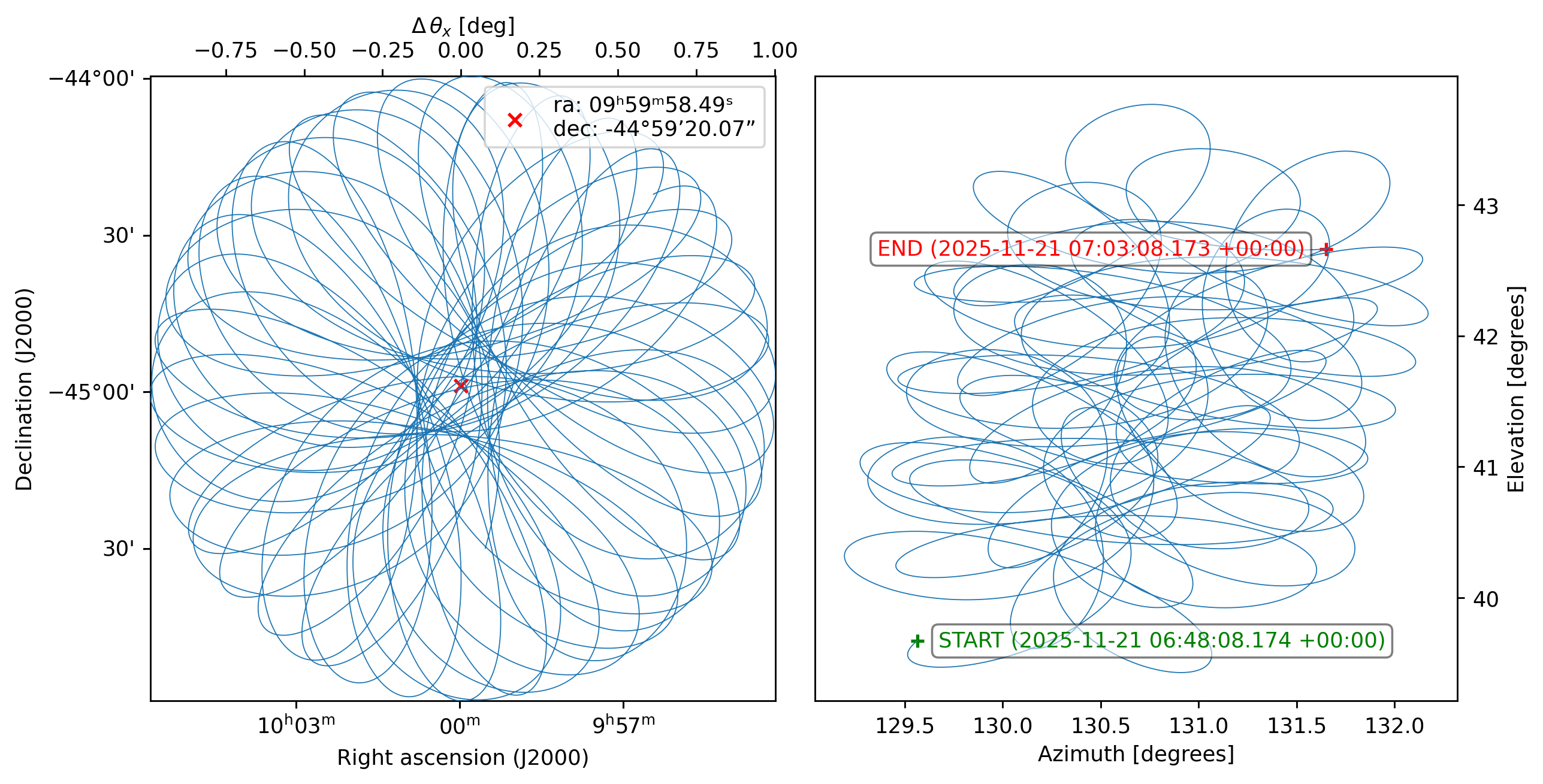

../../_images/tutorials_inputs_scan-patterns_3_1.png

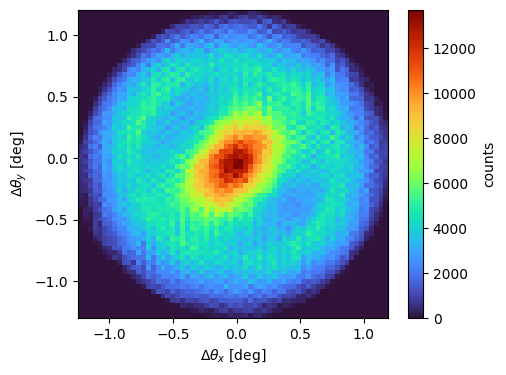

../../_images/tutorials_inputs_scan-patterns_3_2.png

[4]:

plans = planner.generate_plans(total_duration=900,
                               scan_pattern="raster",
                               scan_options={"radius": 1e0, "n": 21, "speed": 2e-1})
plans[0].plot()
plans[0].plot_counts(instrument="test/1deg")

2026-03-12 00:03:43.121 WARNING: No noise level specified for band f090, assuming a sensitivity of 50 uK_RJ√s.
2026-03-12 00:03:43.149 WARNING: No noise level specified for band f150, assuming a sensitivity of 50 uK_RJ√s.
2026-03-12 00:03:43.176 WARNING: No noise level specified for band f220, assuming a sensitivity of 50 uK_RJ√s.

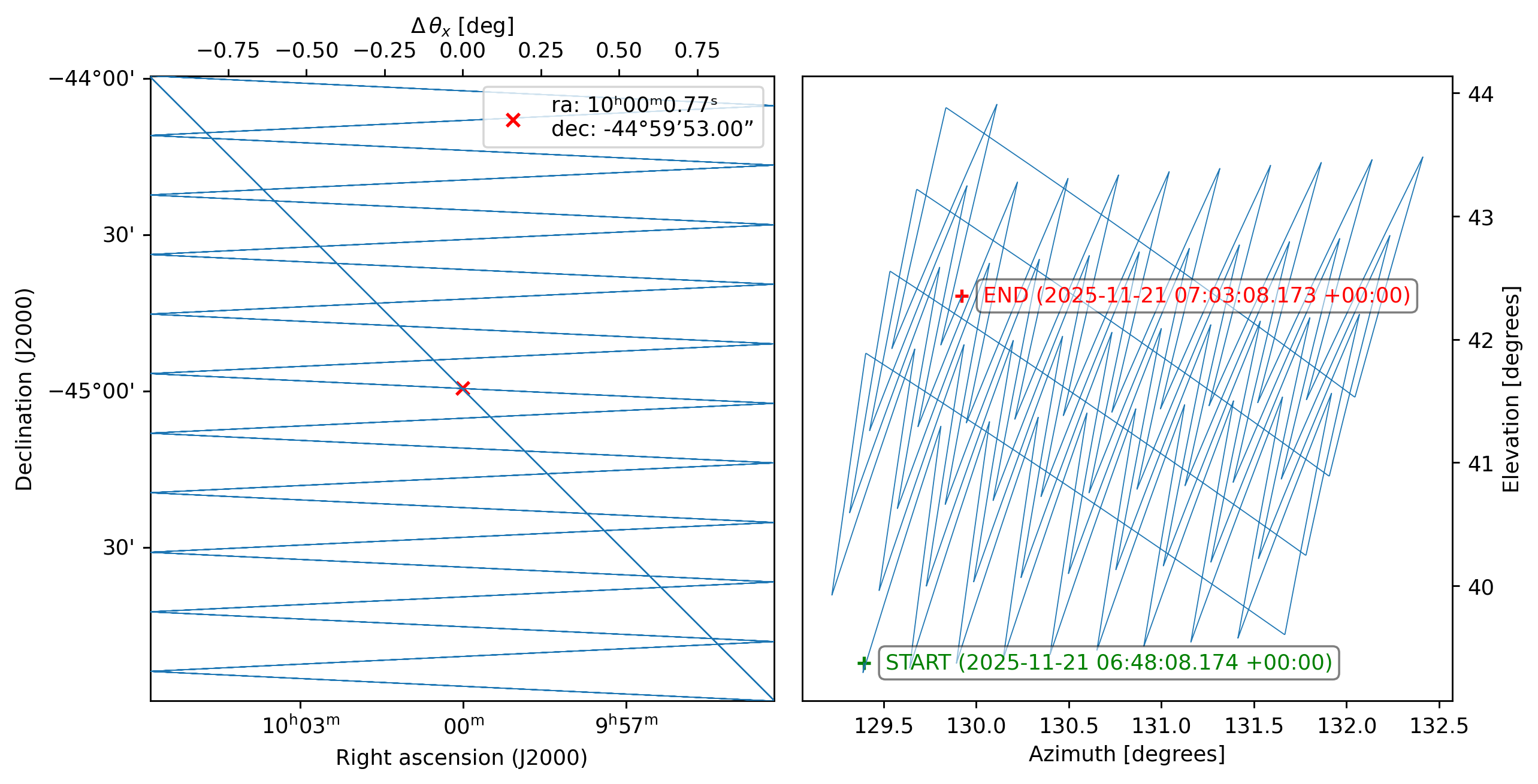

../../_images/tutorials_inputs_scan-patterns_4_1.png

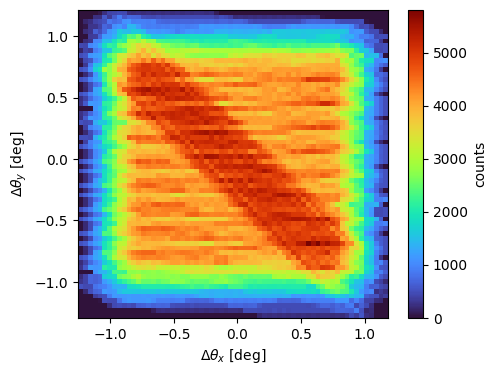

../../_images/tutorials_inputs_scan-patterns_4_2.png

[5]:

plans = planner.generate_plans(total_duration=900,
                               scan_pattern="double_circle",
                               scan_options={"radius": 1e0,
                                             "ratio": 0.75,
                                             "speed": 2e-1})
plans[0].plot()
plans[0].plot_counts(instrument="test/1deg")

2026-03-12 00:03:46.163 WARNING: No noise level specified for band f090, assuming a sensitivity of 50 uK_RJ√s.
2026-03-12 00:03:46.191 WARNING: No noise level specified for band f150, assuming a sensitivity of 50 uK_RJ√s.
2026-03-12 00:03:46.219 WARNING: No noise level specified for band f220, assuming a sensitivity of 50 uK_RJ√s.

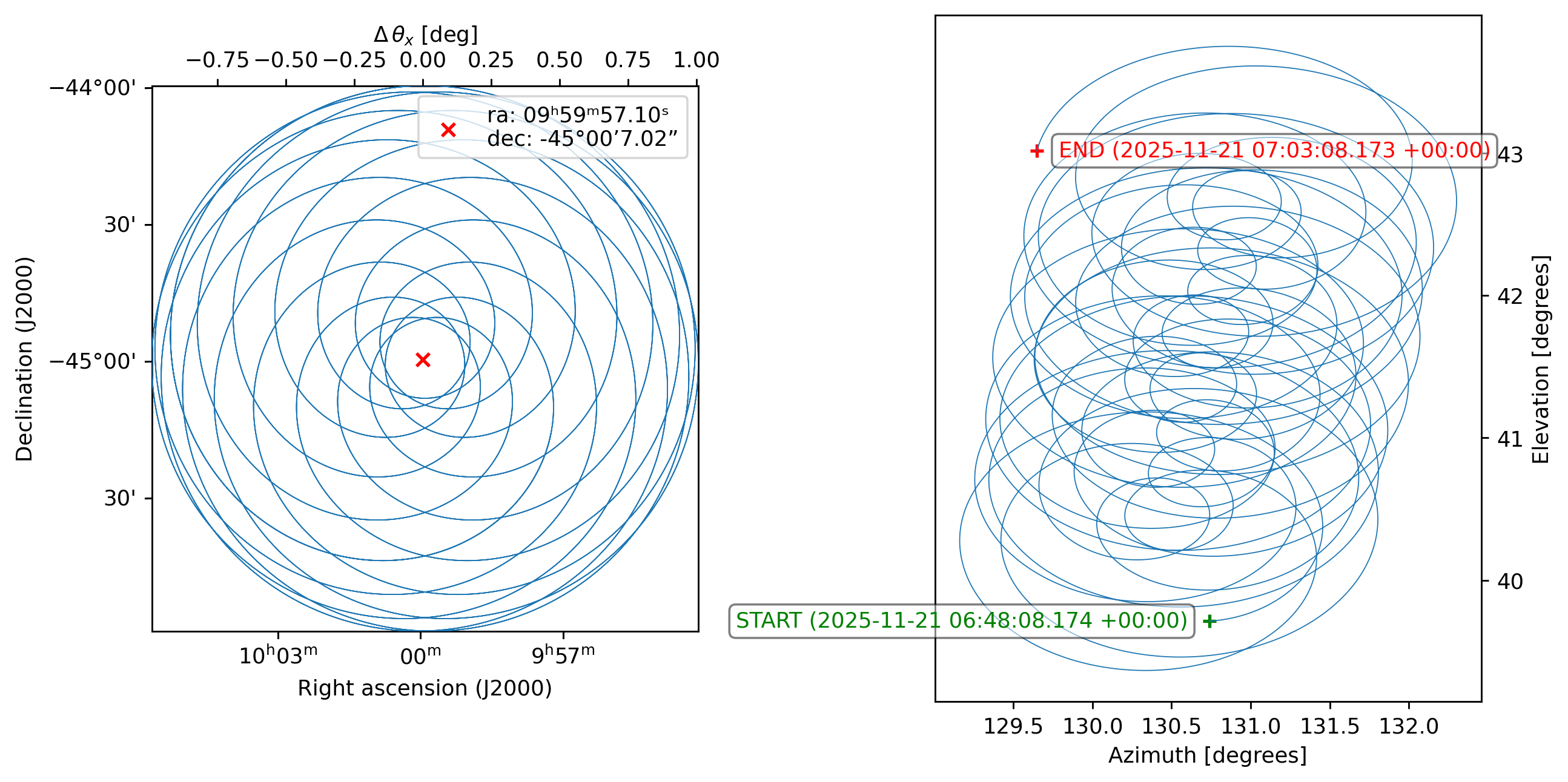

../../_images/tutorials_inputs_scan-patterns_5_1.png

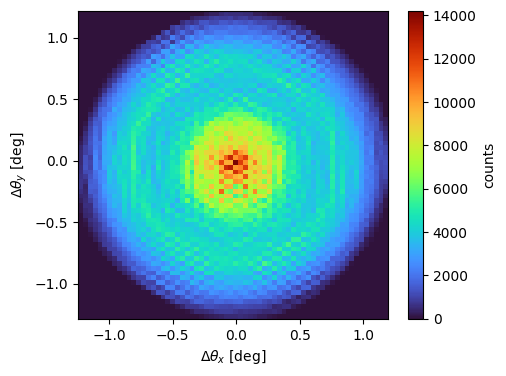

../../_images/tutorials_inputs_scan-patterns_5_2.png

[6]:

plans = planner.generate_plans(total_duration=900,
                               scan_pattern="lissajous",
                               scan_options={"x_throw": 1e0,
                                             "y_throw": 0.75,
                                             "speed": 2e-1})
plans[0].plot()
plans[0].plot_counts(instrument="test/1deg")

2026-03-12 00:03:49.078 WARNING: No noise level specified for band f090, assuming a sensitivity of 50 uK_RJ√s.
2026-03-12 00:03:49.106 WARNING: No noise level specified for band f150, assuming a sensitivity of 50 uK_RJ√s.
2026-03-12 00:03:49.135 WARNING: No noise level specified for band f220, assuming a sensitivity of 50 uK_RJ√s.

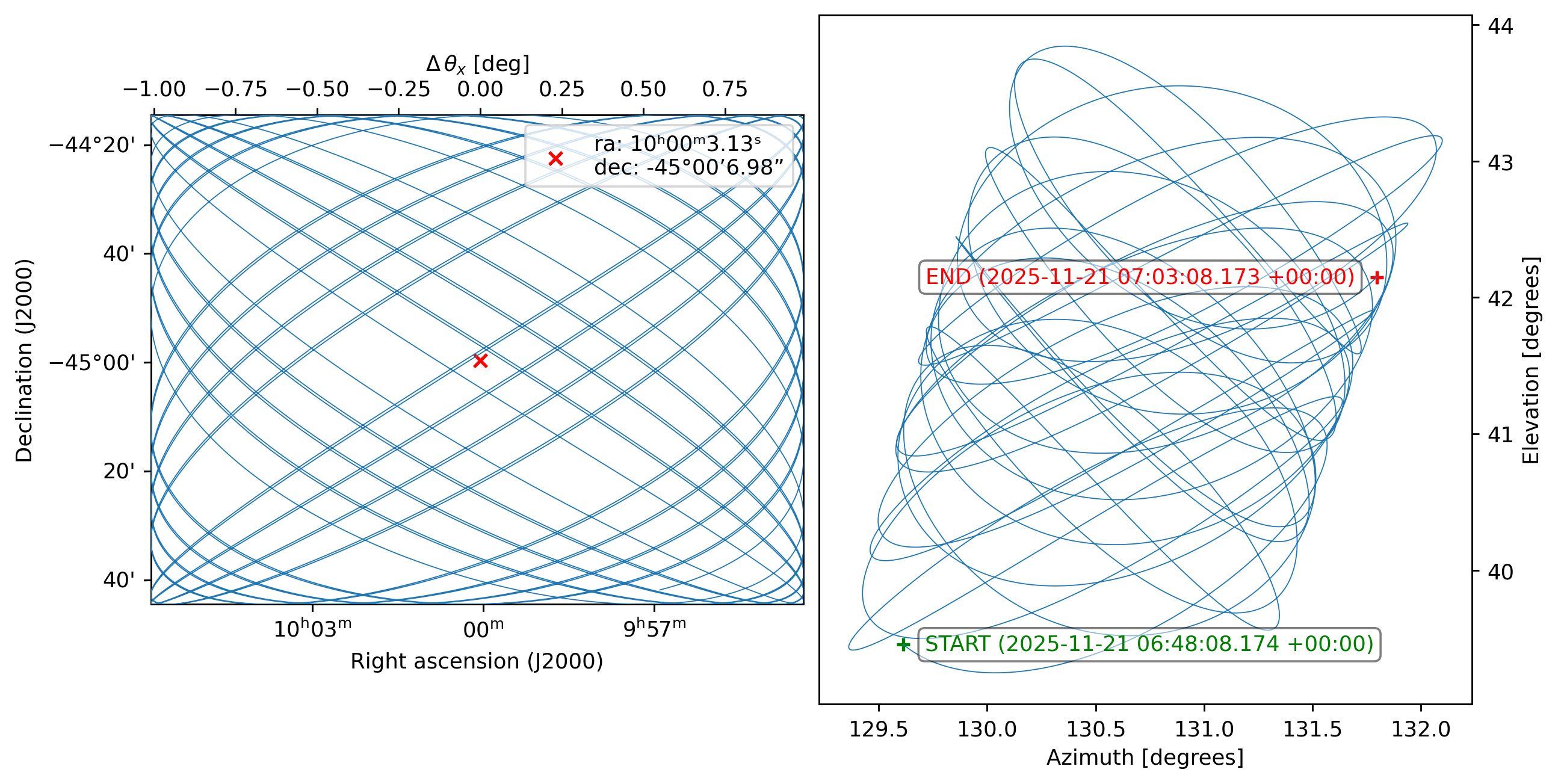

../../_images/tutorials_inputs_scan-patterns_6_1.png

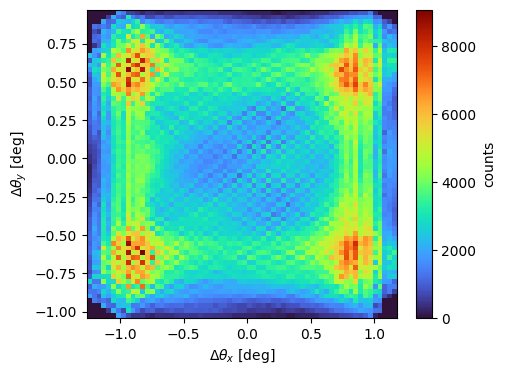

../../_images/tutorials_inputs_scan-patterns_6_2.png
